The 719LCD Casa is an LCD display incorporated Keypad. The defining traits of this LCD keypad are the layout and signals. Below, you may click the layout and signal diagrams to see if the 719LCD Casa Keypad is right for you.

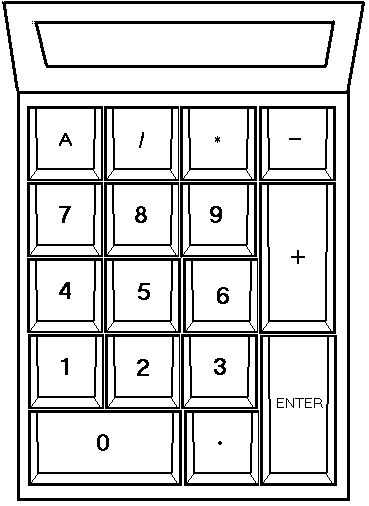

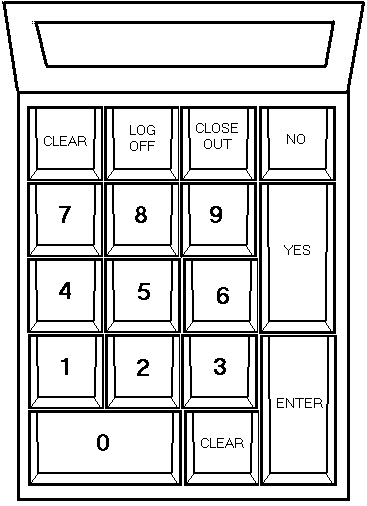

Layout Signals Picture

Click to Enlarge

The LCD display that is incorporated with the 719LCD Casa keypad is a a 2 x 16 LCD Matrix display. Communication with the display is preformed through the serial port. Below is a sample of what the LCD looks like.

The display is measured to be 16mm x 65mm.
